Feb 14, 2022

Laser Tech Tips - RF Power Tubes


A new RF power tube for your CO2 laser can be costly, don’t let a bad socket ruin your investment!

Inspecting your laser socket on a consistent basis will reduce tube replacements, lower overall costs, and maximize your machine’s uptime.

RF TubeRF Power Tubes are the heart of a CO2 laser, and having a clean, undamaged socket is essential for the tube's health. When you replace the RF tube, always inspect the condition of the socket before replacing it. A bad socket will result in a shorter life of the RF tube.

The heater circuit passes through hundreds of amps (like a welder); if the contact is bad, the tube will overheat and can result in breaking the ceramic to metal seal.


When inspecting the socket, look for:
  • Bent or broken finger contacts
  • Pitting of contact surfaces
  • Excessive oxidation on contact fingers
  • Missing or broken springs (on the inner filament contact)

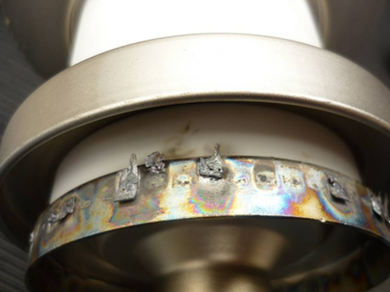

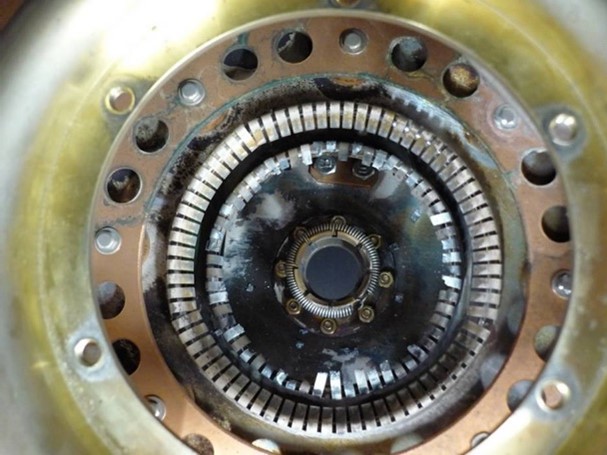

 Bad RF TubeBad RF Tube 2

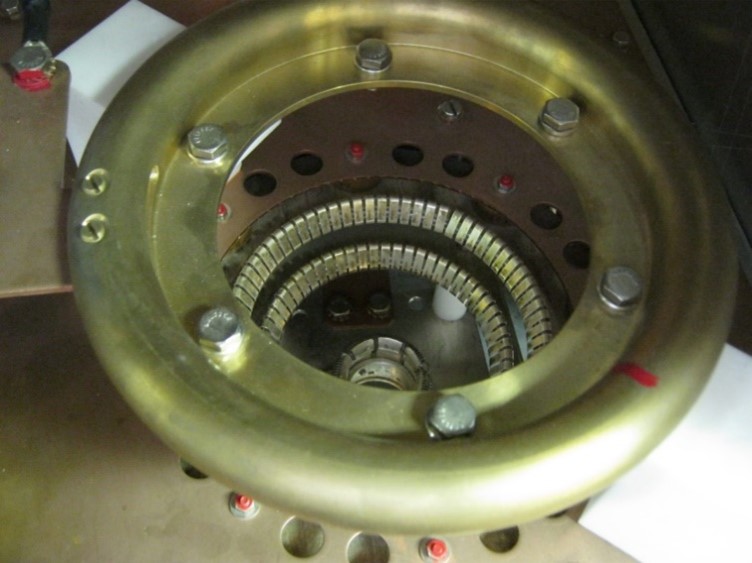

Below is a photo of a “good” socket.  If the socket no longer looks like this, it is best to replace it with the the genuine Thales sockets for the RS3021CJ triode and RS2048CJC tetrode. This will result in a longer RF tube life and properly protect your investment.

Good Socket

If you have any questions, or would like to speak to one of our laser product specialists, please contact us at:
 laser@rell.com | 800-348-5580 | 630-208-2200
